Tilting GDC (Gravity Die Casting) Machines

  • Home
  • Tilt GDC Machines

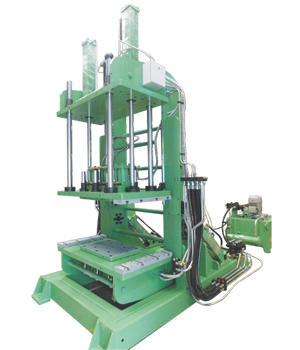

jb-engineering-tilt-gdc-machine

Tilt Gdc Machines

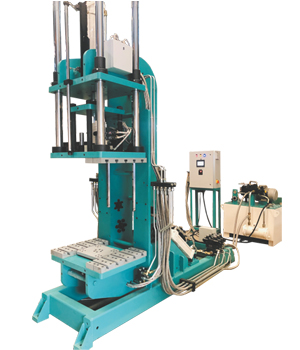

jb-engineering-tilt-gdc-machine

Tilt Gdc Machines

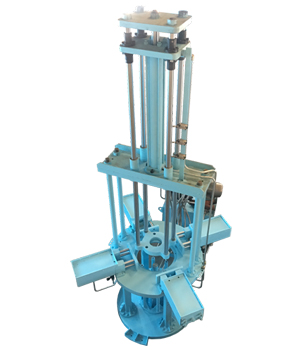

wheeler-alloy-wheel-vertical-gdc-machine

2 Wheeler Alloy Wheel Vertical Gdc Machines

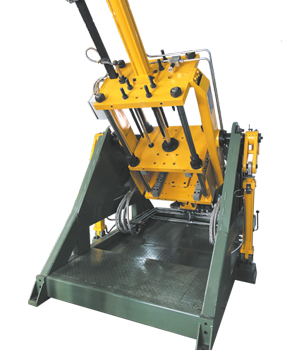

tilt-gdc-machine

Tilt Gdc Machine

Center Tilting Pivot - 45 to 90
Die Mounting Area - 700 x 600mm
Max. Die Weight - 600 kg

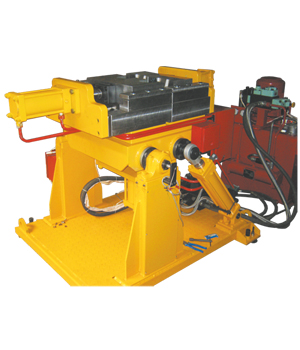

tilt-gdc-machine-with-side-blocks

Tilt Gdc Machines With Side Blocks

Bottom Ejector

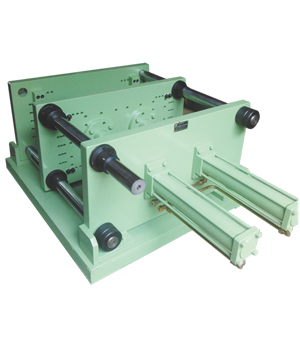

stationary-gravity-die-casting-machine

Stationary Gravity Die Casting Machines

Platen Size - 1100 x 700mm
Die Weight - 900 kg
Get in Touch

We are Manufacturer, Supplier, Exporter of Tilting GDC (Gravity Die Casting) Machines, 4 Wheel Tilting Die Casting Machines. This product is also known as 4 Wheel Tilt DCM (Die Casting Machine). Our setup is situated in Pune, Maharashtra, India.

Model No. JB-T1 JB-T2 JB-T3 JB-T4
Max. Die Mounting Area ( Mm) 550 x 750 750 x 1000 1000 x 1250 1250 x 1500
Min / Max. Shut Height ( Mm) 300 / 800 300 / 900 400 / 1200 400 / 1400
Max. Die Weight ( Kg) 800 1600 2400 4000
Min Tilt Time ( Sec.) 7-8 8-10 10-12 12-16
Electric Motor ( Kw) Hp (5.5) 7.5 (5.5) 7.5 (7.5) 10 (11) 15
Hydraulic Pump Flow Hi Lo ( Lpm) 50 LPM 80 LPM 100 LPM 130 LPM
Max. Operating Pressure ( Kg/ Cm2) 80 80 100 120
Oil Tank Capacity ( Ltrs.) 300 500 600 800
T Slots For Die Mounting M16 M20 M20 M24
Max. Stroke Of Eject Cyl. ( Mm) 50 50 50 80
Prov. For Bumper Rod Ejection M20 M24 M30 M30
